Chemical Resistant Gel Coat Paint Vinyl Ester Gel Coat Surface Protection For Composites FRP

  • 1
  • 2
  • 3

Certification : ISO9001

Place of Origin : CHINA

MOQ : 500KGS

Payment Terms : T/T

Brand Name : WGSC

Price : $2.25-$3.52（KG）

Delivery Time : 3-7 work days

Supply Ability : 60000KGS/month

Packaging Details : Standard Drum

Application Method : Brush or Roller

Uv Resistance : Good

Water Resistance : High

Adhesion : Strong

Chemical Resistance : Excellent

Hardness : High

Contact Now

Gelcoats: Ultimate Surface Protection For Composites And FRP Applications
Attribute Value
Application Method Brush or Roller
UV Resistance Good
Water Resistance High
Adhesion Strong
Chemical Resistance Excellent
Hardness High

Gelcoats: Ultimate Surface Protection For Composites And FRP Applications

Gel Coat Resins form a 0.4-0.8mm high-performance protective layer on composite surfaces, delivering decorative aesthetics and structural durability for FRP products. Engineered for superior UV resistance, chemical corrosion protection, and >95% gloss retention (ISO 2813), our gel coats enable flawless finishes in marine, construction, and industrial sectors.

Core Technology Advantages
  • Zero Substrate Exposure: Seamlessly blocks fiber print-through and micro-cracks
  • Multi-Process Compatibility: Optimized for spray-up, hand lay-up & vacuum infusion
  • Eco-Compliance: Low styrene emission (<50ppm), REACH & RoHS certified
  • Military-Grade Protection: Salt spray resistance >5,000h (ASTM B117)

Four Gel Coat Types: Targeted Application Matrix
Type Chemical Base Key Advantages Primary Applications
Orthophthalic Gel Coat Phthalic Anhydride + Propylene Glycol Cost-effective, easy application Storage tanks, decorative panels
Isophthalic Gel Coat (ISO Type) Isophthalic Acid + Propylene Glycol Hydrolysis resistance ↑40%, HDT >100°C Ship decks, swimming pools, chemical linings
ISO-NPG Gel Coat Isophthalic Acid + Neopentyl Glycol UV stability (ΔE<2 after 30y), gloss retention >90% Yachts, luxury sanitaryware, wind turbine blades
Vinyl Ester Gel Coat Epoxy Acrylate Acid/alkali resistance (pH 1-14), HDT >130°C Electroplating tanks, FGD scrubbers, nuclear facilities
Selection Protocol
  • Marine Environments: Mandatory ISO-NPG type (DNV-GL/CCS certified)
  • Strong Chemical Exposure: Vinyl ester only (resists hydrofluoric acid)

Complete Technical Specifications (ASTM D638/ISO 1133)
Property Orthophthalic Isophthalic ISO-NPG Vinyl Ester
Viscosity (25 °C, mPa*s) 2,500±300 1,900-2,900 2,200±200 1,800-2,500
Gel Time (25 °C, min) 13.0±3.0 10.0-18.0 15.0±2.0 20.0-30.0
Solid Content (%) 75.0±3.0 78.0±2.0 80.0±1.5 82.0±1.0
Barcol Hardness ≥35 ≥45 ≥50 ≥60
Water Resistance (boiling 24h) Slight gloss loss No change No change No change
Acid Resistance (10% H₂SO₄) Blistering at 72h No failure at 240h No failure at 480h No failure at 2,000h
Validation Notes
  1. Vinyl ester elongation at break >3% (vs. 1.5% for polyester resins)
  2. ISO-NPG retains >92% flexural strength after 5,000h UV accelerated aging

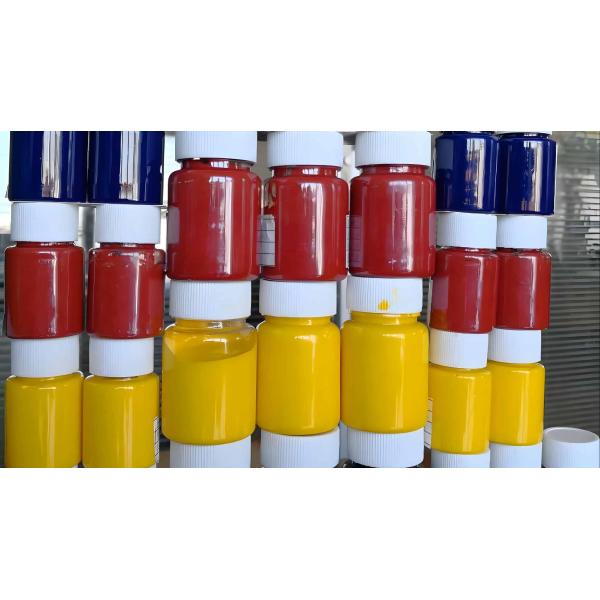

Industrial-Grade Packaging System
Package Type Technical Specification Specialized Use Cases
Standard Drum 20kg galvanized steel + vacuum aluminum liner General-purpose shipping
Pre-Promoted Kit Pre-mixed catalyst, ready-to-use On-site repair & field operations
Arctic Packaging Anti-crystallization agent (-30°C stability) Polar region projects
Explosion-Proof Tote Pressure relief valve + flame-retardant filling Chemical plant transport
Traceability & Safety
  • Laser-Engraved Batch Code: Includes viscosity/gel time/solid content test values
  • Hazard Label: UN 3266 Class 8 Corrosive Liquid (GHS pictograms)

Smart Storage Protocol
Parameter Control Standard IoT Monitoring Critical Response
Temperature 16-30°C Wireless sensors (±0.5°C) >35°C triggers liquid cooling
Humidity ≤80% RH MEMS hygrometer array (±1% RH) >85% RH activates dehumidifier
Vertical Stacking Dedicated racks Tilt sensors (>5° alarm) Auto-lock unstable pallets
Shelf Life 6 months (unopened) ERP auto-lock expired batches Retest viscosity/gel time
Critical Prohibitions
  1. NEVER store with amine hardeners - Causes pre-promoted gel coat failure
  2. BAN silicone-based release agents - Induces fish eyes on surface

Chemical Resistant Gel Coat Paint Vinyl Ester Gel Coat Surface Protection For Composites FRP Chemical Resistant Gel Coat Paint Vinyl Ester Gel Coat Surface Protection For Composites FRP Chemical Resistant Gel Coat Paint Vinyl Ester Gel Coat Surface Protection For Composites FRP Chemical Resistant Gel Coat Paint Vinyl Ester Gel Coat Surface Protection For Composites FRP
